40mm Corner Log Cabin 198 - Large Panes, Double Glazed

Not your postcode?
Setting the first half of your postcode shows you the full choice in your area.
In a moment you may be asked to share your location. Please allow this so that we can show you the full choice in your area (inclusive of delivery charges). You may also set your location manually using the button above.

Click this messge to hide it.
40mm Corner Log Cabin 198 - Large Panes, Double Glazed
1
2
3
4
Play Video
Play Video

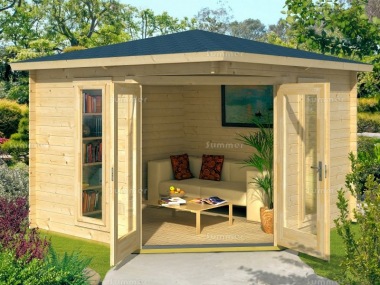

Pictures 1 and 2 show the 3.0x3.0m log cabin with optional felt tiles. Picture 3 shows a close up view of the metal ridge cover which is now included as standard. The videos show a number of the features of our log cabins - please note, some details may differ between buildings.

Summary:

These incredible value 40mm thick log cabins are available approximately 10'x10' or 12'x12' (3.0x3.0m or 3.5x3.5m) and feature double glazing as standard. Roof options include untearable roofing felt, felt tiles and genuine cedar shingles. Other popular options include floor and roof insulation. These 5 sided log cabins are designed to suit a corner location and feature panoramic low level glazing with fully glazed double doors and two large opening windows. These superb made log cabins are made in Scandinavia with high grades of timber throughout. The floor and roof are attractive and durable tongued and grooved boards. Internal skirting boards and a stainless steel door threshold are also included. Detailed fitting instructions are supplied for DIY self assembly. Low cost installation is available in many areas.

LIMITED STOCK - SELLING FAST!

  • In stock now: 10'x10' (3.0x3.0m) and 12'x12' (3.5x3.5m)
  • Click here to see our Log Cabin Stock List with fast delivery
Back to the Top
  • All timber used in the construction of these log cabins originates from sustainable forests
  • Interlocking 40mm thick tongued and grooved wall logs
  • All logs double grooved for superior draughtproofing
  • Strong 18mm thick tongued and grooved roof boards
  • Strong 18mm thick tongued and grooved floor boards
  • Pressure treated floor joists and foundation beams (lifetime preservative treatment)
  • Substantial 3"x2" floor joists and foundation beams (finished size 45x70mm)
  • Substantial 4"x2" roof purlins (finished size 40x94mm)
  • Morticed and tenoned joinery door and windows
  • Superior quality laminated timber doors and windows - less likely to twist or warp, more attractive than finger jointed timber
  • Double hinged doors 1.43m wide x 1.74m high (4'8" x 5'8")
  • Mortice lock with handles and keys
  • 2 inward opening tilt and turn windows 0.52m wide x 1.67m high (1'8" x 5'6")
  • Double glazed doors and windows with annealed glass (no plastic, acrylic, styrene or perspex)
  • Stainless steel door threshold
  • Internal skirting boards
  • Chamferred top wall logs
  • Attractive and functional metal ridge cover in powder coated steel
  • Timber storm battens

3.0x3.0m log cabin

  • External cabin size 3.0m wide x 3.0m deep (9'10" x 9'10")
  • Internal room size 2.72m wide x 2.72m deep (8'11" x 8'11")
  • Minimum base size 2.8m wide x 2.8m deep (9'2" x 9'2")
  • Overall roof size approximately 3.2m wide x 3.2m deep (10'6" x 10'6")
  • Ridge height approximately 2.47m (8'1")
  • Eaves height approximately 1.99m (6'6")

3.5x3.5m log cabin

  • External cabin size 3.5m wide x 3.5m deep (11'6" x 11'6")
  • Internal room size 3.22m wide x 3.22m deep (10'7" x 10'7")
  • Minimum base size 3.3m wide x 3.3m deep (10'10" x 10'10")
  • Overall roof size approximately 3.69m wide x 3.69m deep (12'1" x 12'1")
  • Ridge height approximately 2.47m (8'1")
  • Eaves height approximately 2.0m (6'7")

LOG CABINS - THE BENEFITS: Log cabins are popular for many reasons, especially as a comfortable garden room to sit and relax in but also as a workshop or heavy duty storage shed. On the outside cabins have a chunky look and feel. On the inside, with no internal framework, the clean lines look smarter than the inside of a traditional shed or summerhouse. In addition, the wall logs are thicker than the shiplap cladding used in traditional sheds and summerhouses, which provides better insulation. If you want the option of winter use we recommend floor and roof insulation, which is difficult to fit retrospectively so it needs to be fitted with the cabin. We offer low price insulation packs complete with fixings and instructions. Where available, double glazing also improves the insulation especially if the cabin has a large glazed area. Another significant benefit of log cabins is that you get more wood for your money when compared with a traditional shed or summerhouse or garden office. With no prefabricated wall panels a log cabin requires less production time.

SCANDINAVIAN REDWOOD OR WHITEWOOD: The most widely used timber in the UK for years, Scandinavian Redwood and Whitewood grow in the well managed forests of Scandinavia and the coldest parts of Northern Europe. The cold climate ensures slow growth. The growth rings are much closer together than faster growing trees from warmer climates. As a result the timber is heavy and durable with a close grain pattern. The wood is seasoned and kiln dried to achieve the correct moisture content before it is machined. Redwood and Whitewood are so similar in appearance and performance that it is difficult to tell the difference. Both are classified as slightly durable and treatment is required for outside use. The forests of Scandinavia and Northern Europe have been responsibly managed on a sustainable basis for centuries so Scandinavian Redwood or Whitewood is an enviromentally friendly choice.

NATURAL WOOD: First, high grade timber is dried in kilns until it reaches the optimum moisture content, then it is planed smooth and machined into tongued and grooved logs and boards. Next the logs are precisely machined at the ends to ensure a precise fit. Finally, each cabin is carefully packed and wrapped. When you unwrap it the wood is untreated. We recommend treating it only after the cabin has been successfully installed and ideally within a week or two. Treating the logs before fitting may cause the wood to swell up and the logs may not fit together correctly. If you are fitting your cabin in a restricted space where future access will be difficult you can stain the logs during installation by reaching down a few logs at a time as you fit them.

FULLY INTERLOCKING LOG CORNERS: These traditionally made log cabins feature interlocking corner logs. Each wall log is precisely machined and notched out to ensure a strong and weatherproof joint. The first log is laid at the bottom and the rest slot into each other, working upwards one log at a time. No screws or nails are required which makes installation easier and also allows for timber movement. The finished corner assembly is not only immensely strong but also weatherproof and draughtproof. If possible cabins with interlocking logs should be treated after assembly. Treating the logs on site before fitting requires considerable care. If swollen the precision milled joints may not slot together.

WEATHERPROOF DOUBLE GROOVED LOGS: Thinner wall logs feature a single tongue and groove but thicker logs feature a double tongue and groove. The double tongue and groove provides a stronger and more weatherproof joint. Thicker logs also provide improved insulation.

CHAMFERRED TOP WALL LOGS: This high specification building features a subtle quality feature. The top log in each side wall is chamferred to the same angle as the roof slope. This little detail provides much improved insulation and draughtproofing. It also provides a much neater internal appearance and the roof boards are easier to fix. This simple design feature eliminates an obvious cold spot. The benefits of this feature are magnified if roof insulation is specified.

HEAVY DUTY TONGUED AND GROOVED FLOOR: This cabin includes a heavy duty timber floor with tongued and grooved floor boards and substantial floor joists. Skirting boards are also included to ensure a neat internal finish. The floor joists and tongued and grooved boards are supplied loose for fast assembly on site. Unlike many log cabin floor kits, all timber is cut to size which saves time during installation. It also ensures that there are no visible joins in the finished floor. The floor is assembled quickly with no visible joints. With some cheaper cabins the boards must be cut to fit on site. This takes much longer and many of the joins are visible afterwards.

PRESSURE TREATED FLOOR JOISTS: The floor joists are the only timber in direct contact with the ground and they are pressure treated for durability. The joists are laid down on the base first and then the first wall logs are placed on top of the joists. The floor boards are often fitted at the end, after the cabin has been completed. This design ensures that the wall logs and the floor boards are not in contact with the ground. It also allows for ventilation and drainage below the floor and the walls. Pressure treatment is a lifetime preservative treatment. The preservative is forced into the timber under pressure in a vacuum and penetrates below the surface. All other treatments apply a coat of stain to the surface of the timber only. With pressure impregnated timber, the chemicals are permanently fixed in the wood. Tanalith E is the most popular preservative used so pressure treated wood is often described as tanalised.

STORM BARS: Storm bars are an important quality feature. One obvious benefit is that storm bars help to protect your log cabin from wind damage. In addition, by clamping the logs together storm bars make the joints more weatherproof and reduce any bowing or twisting of the logs. The storm bars are easily fitted at each corner to hold the individual logs together tight. This counters the impact of strong winds. This feature is especially useful if the cabin has a large roof overhang which is exposed to the wind. Many log cabins do not include any storm bars. These timber storm bars feature elongated fixing holes to allow for timber movement. The bolts are easily accessible after installation so they can be tightened or loosened as required to allow for any timber movement.

WEATHERPROOF METAL RIDGE COVER: This log cabin features a one-piece prefabricated metal ridge cover which fits over the highest part of the roof. With an attractive and durable powder coated finish the ridge cover provides a neat finish but it also makes the finished roof more weatherproof. Installation is also quicker and easier.

JOINERY DOORS & WINDOWS: These log cabins feature joinery made door leaves and window sashes with morticed and tenoned joints throughout. This traditional jointing process is commonly used in the housebuilding industry when timber windows and doors are specified. A rebate or mortice is cut out in one piece of wood which precisely matches a tongue or tenon cut in the other piece of wood. Morticed and tenoned joints are the strongest type of joint used in the construction of wooden windows and doors. High quality handles, locks and hinges are also included.

METAL DOOR THRESHOLD: A weatherproof metal threshold is included to provide sustained access for heavy items such as ride on mowers and motorbikes. Without a metal threshold the wooden frame is vulnerable to wear and the elements. Over time a metal threshold will extend the effective lifespan of the door.

LAMINATED DOORS AND WINDOWS: Laminated wood is an engineered structural timber. Precisely machined small sections of wood are glued together under high pressure with strong waterproof adhesive. After extensive machining the finished piece of timber is barely distinguishable from real wood - it is real wood, but it is stronger and less likely to warp or twist. Doors and windows made with laminated timber are less prone to distortion. This is because one piece of wood can move erratically while many pieces of wood counteract each other. It is rare to find laminated doors and windows specified in a log cabin due to the high production cost. This is an important quality feature because in a log cabin the doors and windows are a vital component which is particularly exposed to the elements. Laminated timber is also kind to the environment because it uses offcuts and creates less waste.

VIDEOS: Any videos displayed on this page may be generic and not accurate in every detail although the fundamental nature of the product is portrayed honestly. Some details may differ between buildings. Please refer to the bullet points above for an accurate description of this particular building.

CORNER BUILDING SIZES: For ease of reference these corner log cabins are measured as a square based on the width of the two longest walls. Sizes are sometimes rounded to the nearest nominal size for ease of reading but the correct external wall sizes are listed alongside the price. These sizes do not include the roof overhang. Many other suppliers quote the overall roof size which is much larger. All sizes are approximate.
